MBS earth braids I Cu-ETP1 tinned

2,19 € – 9,21 €

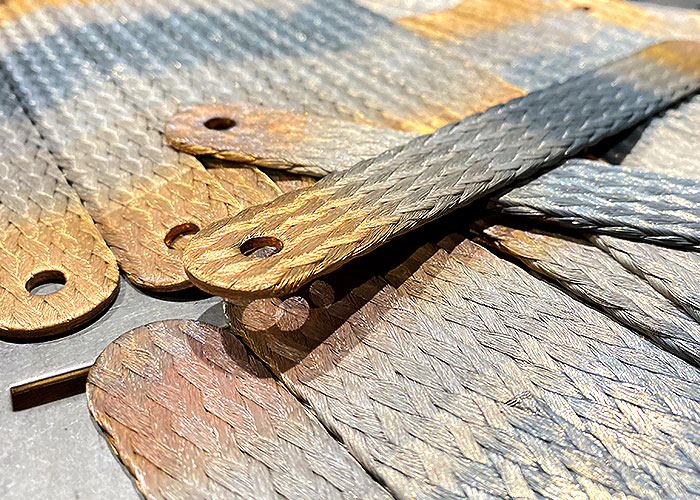

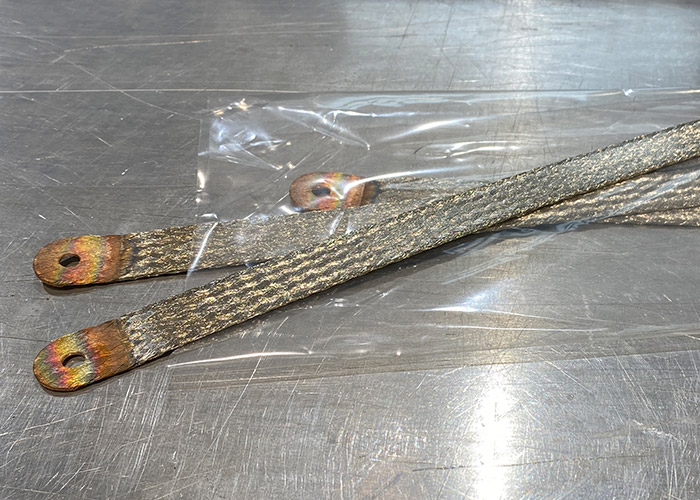

MBS earth braids are made of highly flexible and tinned Cu-ETP1 flat copper braids and are unique on the market.For high operational reliability, the connections are pressure welded in a special process.

By welding the connections, minimal contact resistance is achieved. This eliminates the need for additional contact sleeves with increased resistances.

Type [Cross-section]-[Hole distance]-[Hole diameter]

Clear

Weitere Produkte jederzeit auf Anfrage!

SKU: N/A Category: Earth braids Tags: Tinned, Copper braids, Cu-ETP1

Description
Certificates

Technical details MBS earth braids

Properties of the flat braids

✓ Highly flexible copper flat braids made of tinned Cu-ETP1 with the best conductivity
✓ Surface finishing tinned
✓ Electrical conductance 58 MS/m
✓ Single wire diameter 0.15 mm

Type description*:
Type [ Cross section ] – [ Hole distance ] – [ Hole diameter D1/D2 ]

Typenbez. / Type*	Querschnitt [mm²] / Cross section	LA Lochabstand/ Hole distance [mm]**	A Anschlusslänge / Length connection [mm]	RA Abstand / Distance [mm]	B Breite / Width [mm] (± 1)	D1/D2 Durchmesser / Diameter [mm]***	Gewicht / Weight [kg/m]
MBS 6-LA-D1/D2	6	100-500	16	7,50	10	[4,5/4,5] [4,5/5,5] [4,5/6,5] [5,0/5,0] [5,5/6,5] [6,5/6,5]	0,06
MBS 10-LA-D1/D2	10	100-500	16	7,50	12	[4,5/4,5] [4,5/5,5] [4,5/6,5] [5,0/5,0] [5,5/6,5] [5,5/8,5] [6,5/6,5] [6,5/8,5] [8,5/8,5]	0,10
MBS 16-LA-D1/D2	16	100-500	16	7,50	15	[4,5/4,5] [4,5/5,5] [4,5/6,5] [5,0/5,0] [5,5/6,5] [5,5/8,5] [6,5/6,5] [6,5/8,5] [8,5/8,5]	0,16
MBS 25-LA-D1/D2	25	100-500	21	11,50	23	[5,5/6,5] [6,5/6,5] [6,5/8,5] [6,5/10,5] [8,5/8,5] [8,5/10,5] [8,5/12,5] [10,5/10,5] [10,5/12,5] [12,5/12,5]	0,26
MBS 30-LA-D1/D2	30	100-500	21	11,50	23	[5,5/6,5] [6,5/6,5] [6,5/8,5] [6,5/10,5] [8,5/8,5] [8,5/10,5] [8,5/12,5] [10,5/10,5] [10,5/12,5] [12,5/12,5]	0,31
MBS 35-LA-D1/D2	35	100-500	22 (26)	14,00	23	[5,5/6,5] [6,5/6,5] [6,5/8,5] [6,5/10,5] [8,5/8,5] [8,5/10,5] [8,5/12,5] [10,5/10,5] [10,5/12,5] [12,5/12,5]	0,37
MBS 50-LA-D1/D2	50	100-500	22 (26)	14,00	28	[6,5/8,5] [8,5/8,5] [8,5/10,5] [8,5/12,5] [10,5/10,5] [10,5/12,5] [12,5/12,5]	0,53
MBS 70-LA-D1/D2	70	100-500	22 (26)	14,00	30	[6,5/8,5] [8,5/8,5] [8,5/10,5] [8,5/12,5] [10,5/10,5] [10,5/12,5] [12,5/12,5]	0,73
